Front and back labeling heads sticker labelling equipment automatic
Application
1 , Top and side Labeling Machine apply to label top label and front / back label on bottle at one time ,top and side labeling, one side labeling of square, flat, ellipse and abnormity bottles in the industry of Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea etc.
2 , Two sets labeling heads,each labeling head with one set PLC
3 , The machine has advanced HIM and more function, simple operation, compact configuration.
4 , Using PLC control system, Touch screen operation interface
5 , No object no labelling, no label can revise and inspect by itself.
6 , The machine can work alone or work with other machines.
Technical Parameter
| Production speed | 250BS/min |
| Labeling accuracy | ±1mm |
| Label max width | Neck label125mm front back label195mm |
| Bottle diameter | Thickness≥30mm Height≤500mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | 400mm |
| Outline size | L4080 W1200×1600mm |
| Weight | 650KG |
| Using power | 380V/220V 50Hz 6500W |
Features
1 , The machine using servo motor not step motor.
2 , High labeling precision.
3 , Advanced TAIWAN HITECH interface control system.
4 , Germany Siemens PLC control, high reliability.
5 , Machine structure is simple, compact, easy to operation and maintenance.
6 , Labeling qualitied rate 98-99%
7, The special design of shaping mechanism,ensure accurate positioning is attached to objects,to achieve accurate labeling.
8, The eight dimension adjustment with the new type lebeling head,for special angle products,only need to adjust angle,easy operation and convenient.
Added Details
1 , Touch Screen Control System with 20 sets Job Memory
2 , Labeling speed up to 250 BPM ( according to the length of label )
3 , Simple Straight Forward Operator Controls
4 , Special design for three-side labeling,also added fold label.
5 , On-Screen trouble description which is easy to solve
6 , Most material are made by Aluminum and less are Stainless Frame
7 , Open Frame design, easy to adjust and change the label
8 , Variable Speed with stepless motor
9 , Label Count Down (for precise run of set number of labels) to Auto Shut Off
10 , Stamping Coding Device attached

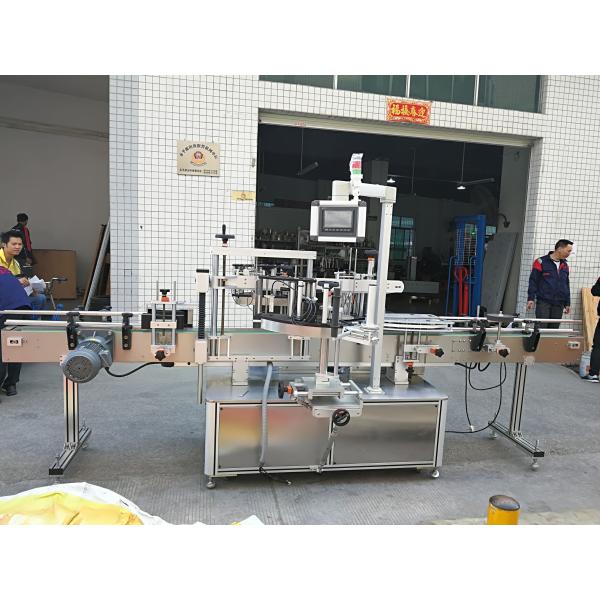

Machine photo
Sample of bottles
